01
Controlled low-speed operation
Built for polishing, finishing, orthodontic adjustment and support procedures that need steady low-speed control.
Low Speed Dental Handpiece
TJ-F20CA

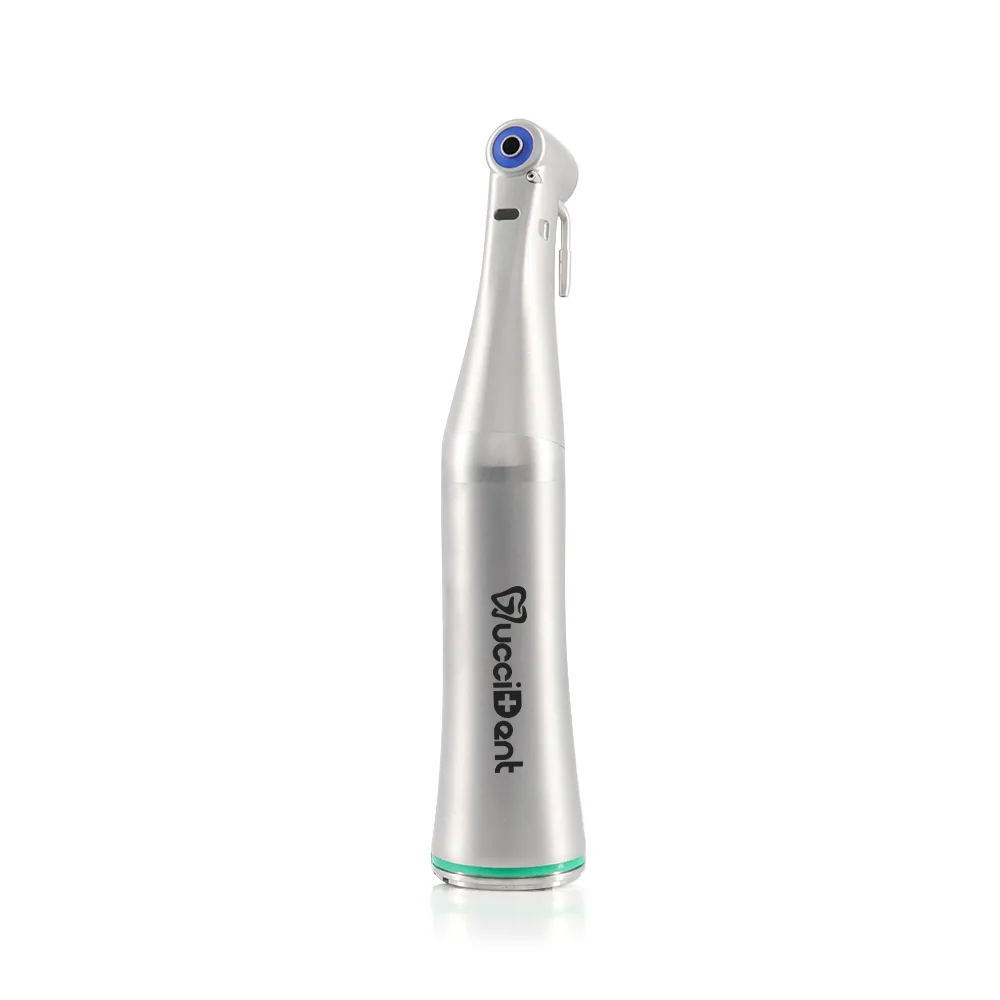

Fiber Optic 20:1 Implant Contra Angle Handpiece
A low-speed handpiece solution for polishing, finishing, orthodontic adjustment, implant support or restorative workflows depending on the selected model.
Type20:1 for implant surgery
LightFiber optic light
Maximum speed20,000rpm/min
ConnectionE-type connector
Why clinics choose the TJ-F20CA
02
E-type clinical workflow
E-type connection supports common air motor, contra-angle and straight handpiece combinations.
03
Treatment-specific head options
Contra-angle, straight, implant and fiber-optic variants cover different chairside tasks.
04
Daily maintenance friendly
Simple handpiece structure supports routine cleaning, lubrication and clinical turnover.
Features
Built around daily handpiece workflows

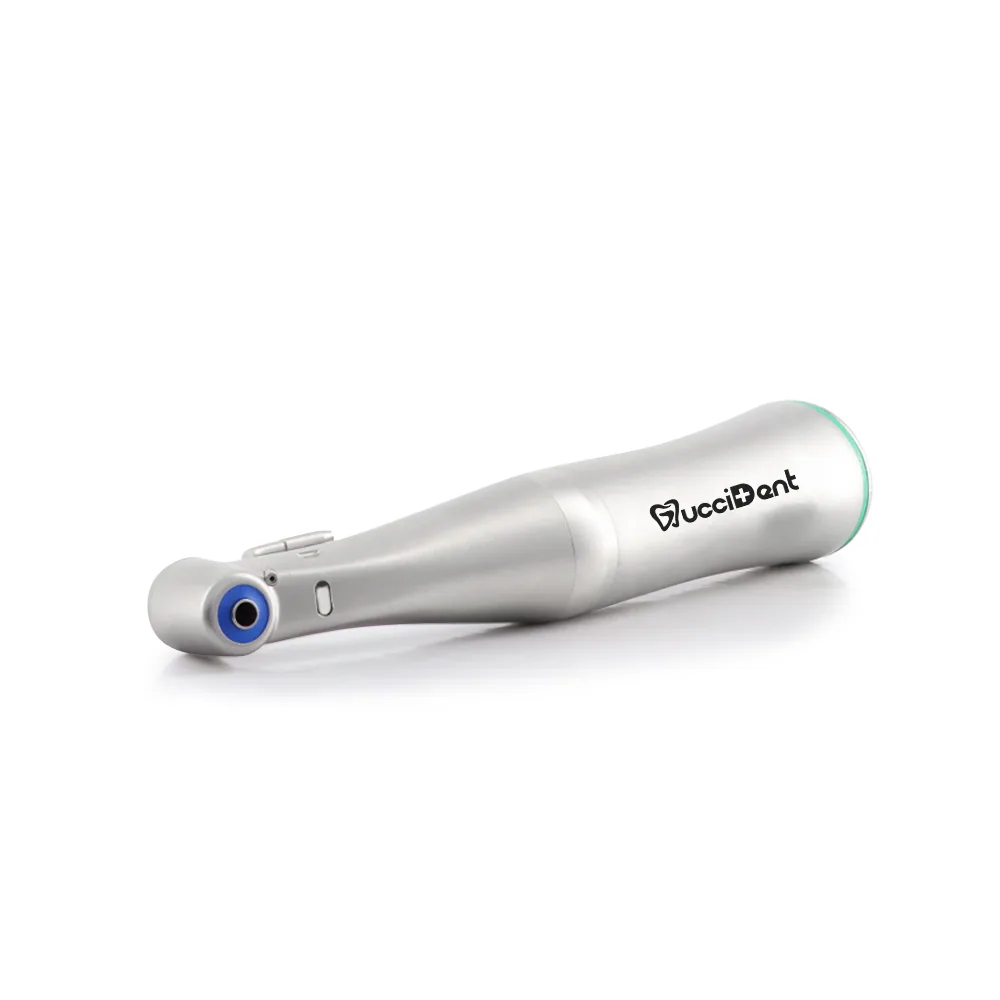

LOW-SPEED CONTROL
Steady finishing workflow
Low-speed operation supports polishing, finishing and auxiliary treatment tasks.

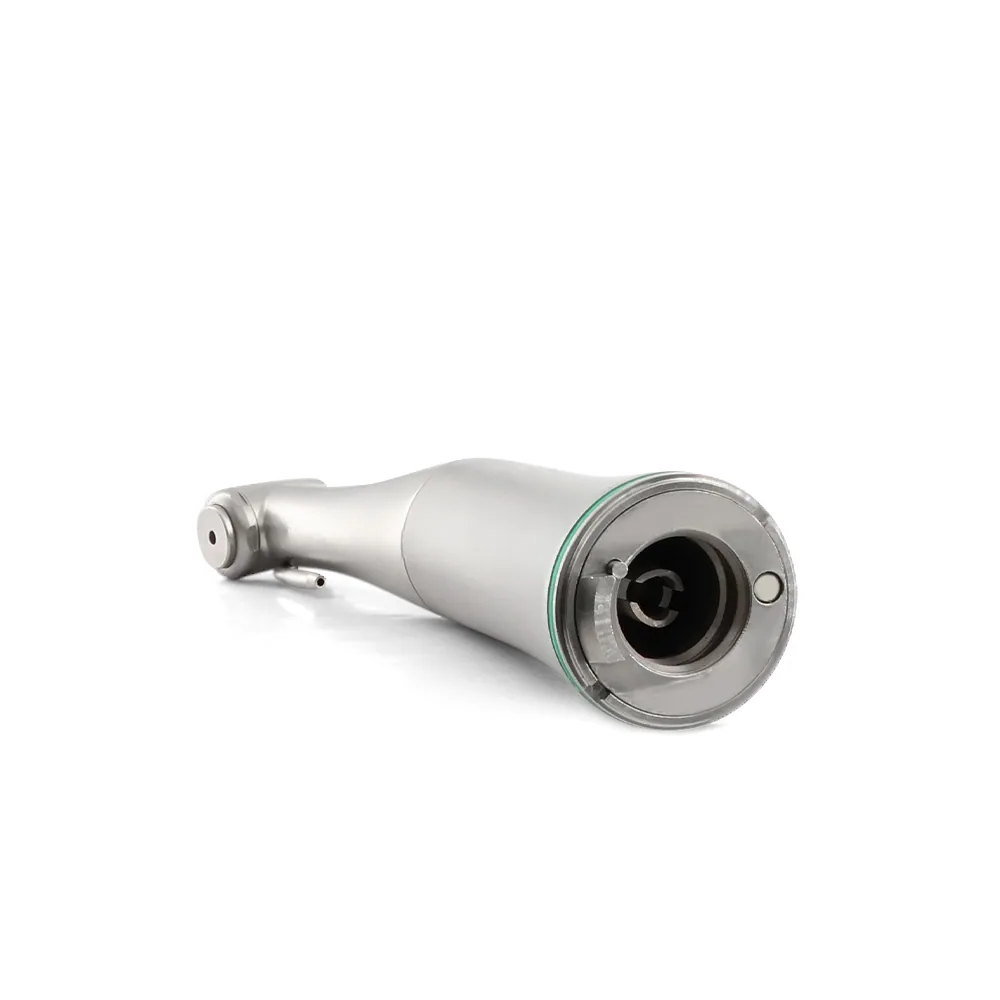

E-TYPE CONNECTION
Common clinic interface
E-type compatibility supports familiar low-speed handpiece combinations.

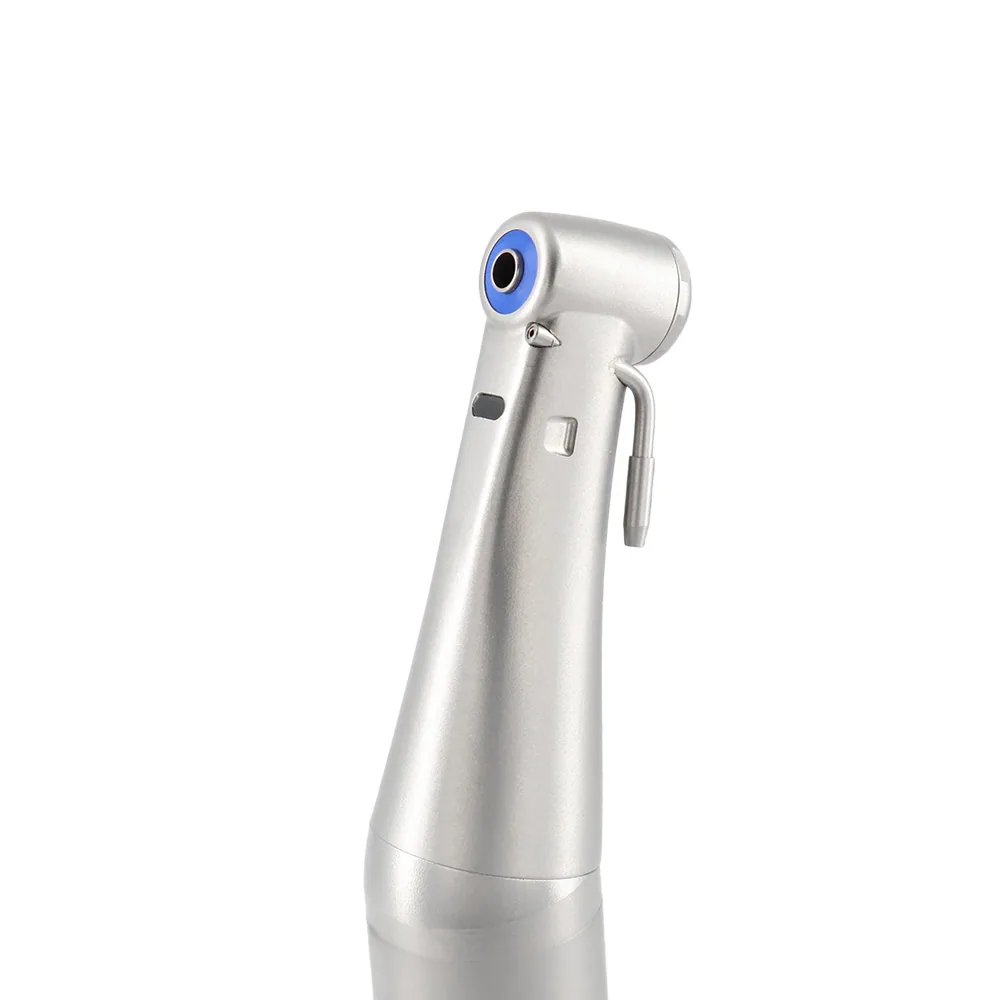

HEAD CONFIGURATION
Options for different procedures
Contra-angle, straight, implant or surgical heads match the intended clinical use.

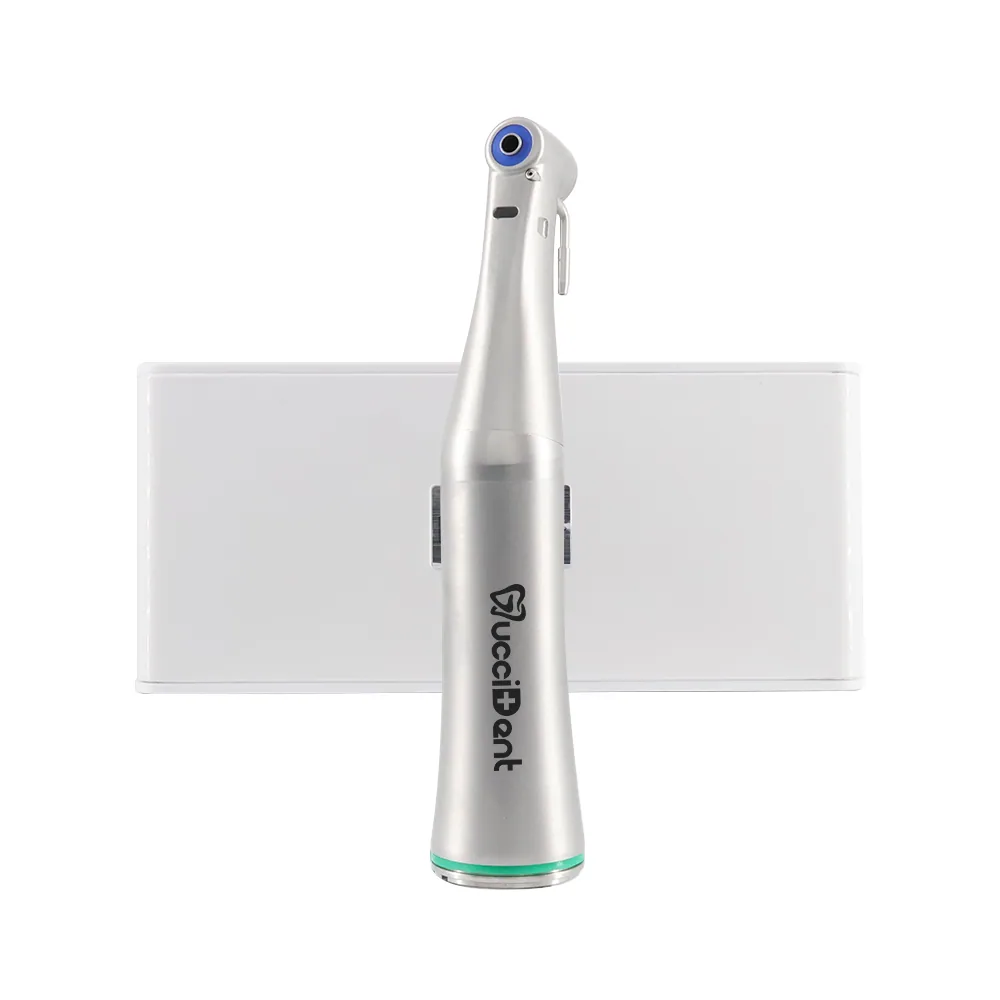

SERVICEABLE DESIGN
Built for daily upkeep
Routine lubrication and cleaning help keep the handpiece ready for repeated use.
Technical Specifications
- Product type
- Fiber Optic 20:1 Implant Contra Angle Handpiece
- Type
- 20:1 for implant surgery
- Light
- Fiber optic light
- Chuck type
- Push button
- Bur type
- Phi 2.35mm
- Water pressure
- 0.2MPa-0.23MPa
- Maximum speed
- 20,000rpm/min
- Water
- External
- Noise
- <50dB
- Connection
- E-type connector
- Head size
- Head height 13.3mm, diameter 9.6mm
- Maximum torque
- 80N.cm
- Material
- Stainless steel
Product resources
Low Speed Handpiece Operation Manual
View or download the supplied manual for low speed dental handpieces.
