01
Controlled low-speed operation
Built for polishing, finishing, orthodontic adjustment and support procedures that need steady low-speed control.
Low Speed Dental Handpiece
LED-10CA
1:1 LED Light Internal Water Spray Dental Contra Angle
A low-speed handpiece solution for polishing, finishing, orthodontic adjustment, implant support or restorative workflows depending on the selected model.
Type1:1 for orthodontics
LightLED light
Maximum speed20,000rpm/min
ConnectionE-type connector
Why clinics choose the LED-10CA
02
E-type clinical workflow
E-type connection supports common air motor, contra-angle and straight handpiece combinations.
03
Treatment-specific head options
Contra-angle, straight, implant and fiber-optic variants cover different chairside tasks.
04
Daily maintenance friendly
Simple handpiece structure supports routine cleaning, lubrication and clinical turnover.
Features
Built around daily handpiece workflows
LOW-SPEED CONTROL
Steady finishing workflow
Low-speed operation supports polishing, finishing and auxiliary treatment tasks.
E-TYPE CONNECTION
Common clinic interface
E-type compatibility supports familiar low-speed handpiece combinations.

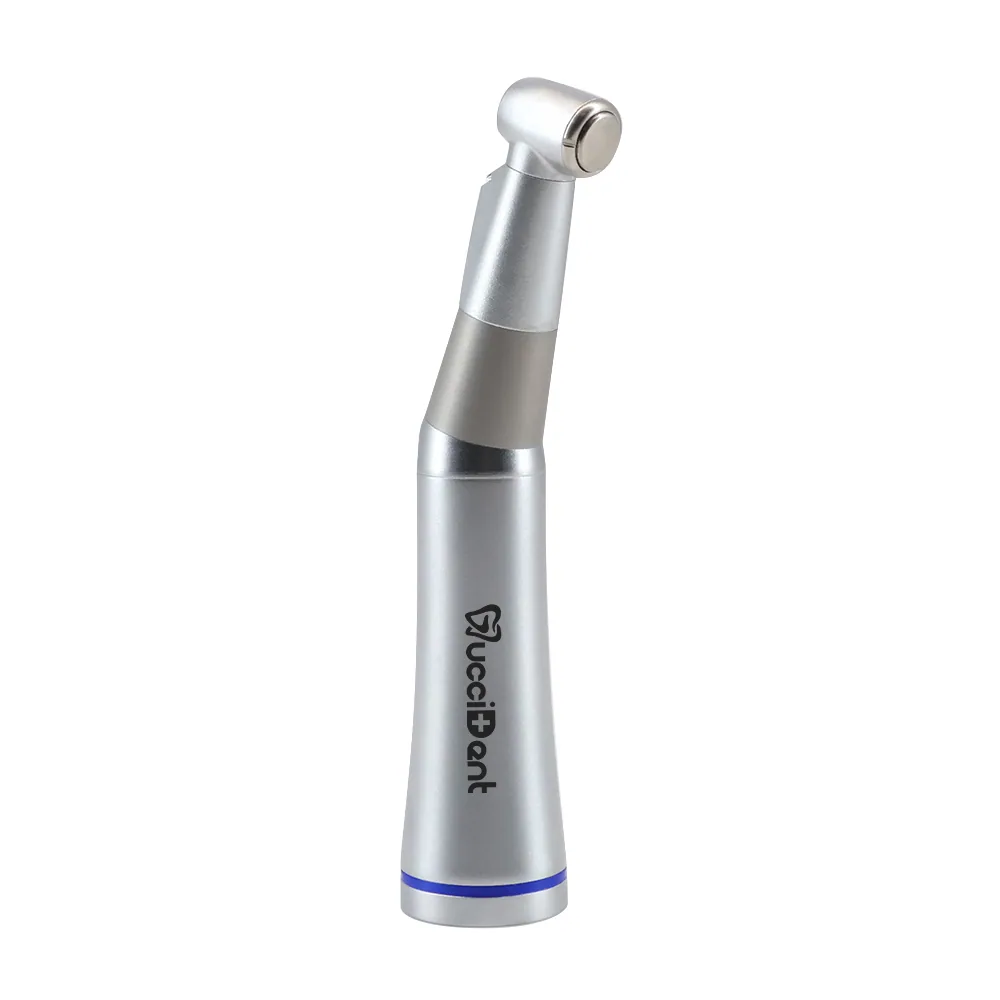

HEAD CONFIGURATION
Options for different procedures
Contra-angle, straight, implant or surgical heads match the intended clinical use.

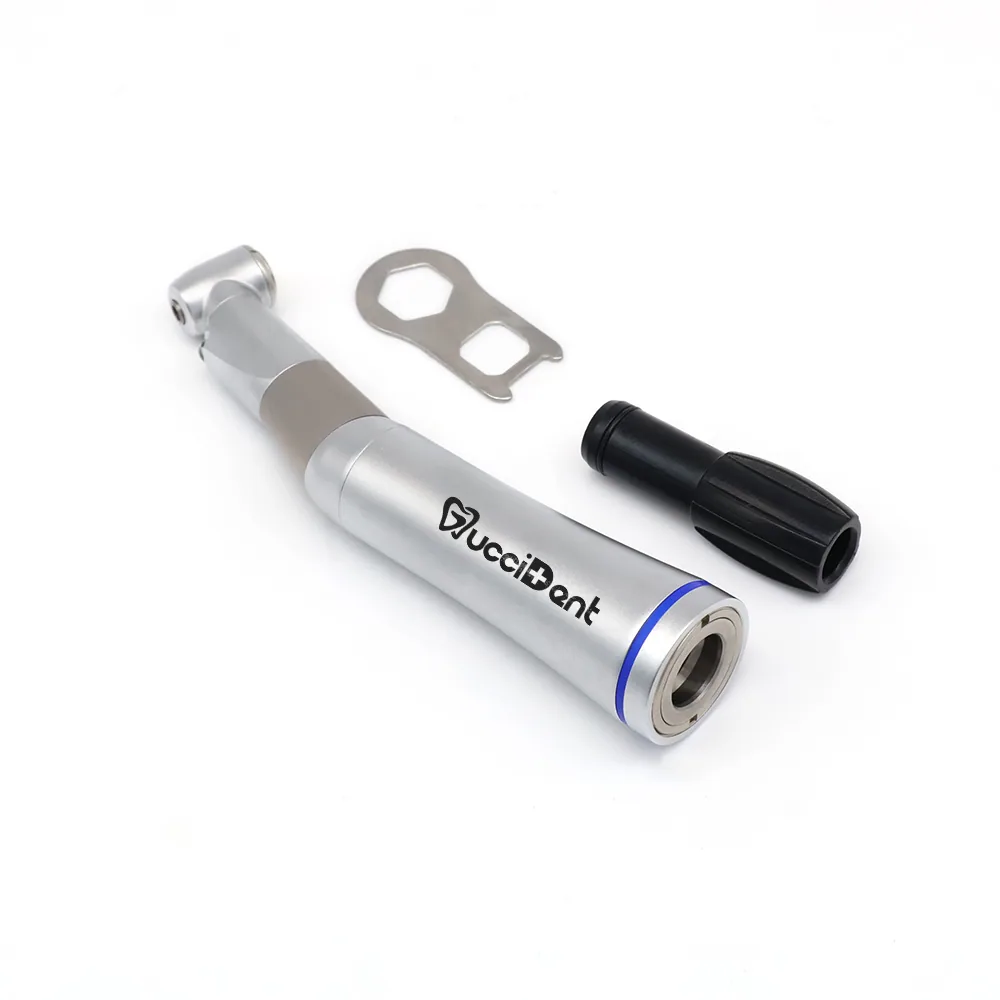

SERVICEABLE DESIGN
Built for daily upkeep
Routine lubrication and cleaning help keep the handpiece ready for repeated use.
Technical Specifications
- Product type
- 1:1 LED Light Internal Water Spray Dental Contra Angle
- Type
- 1:1 for orthodontics
- Light
- LED light
- Chuck type
- Push type
- Bur type
- Phi 2.35mm
- Water pressure
- 0.2MPa-0.23MPa
- Maximum speed
- 20,000rpm/min
- Water
- Internal
- Noise
- <=65dB
- Connection
- E-type connector
- Material
- Stainless steel
Product resources
Low Speed Handpiece Operation Manual
View or download the supplied manual for low speed dental handpieces.
