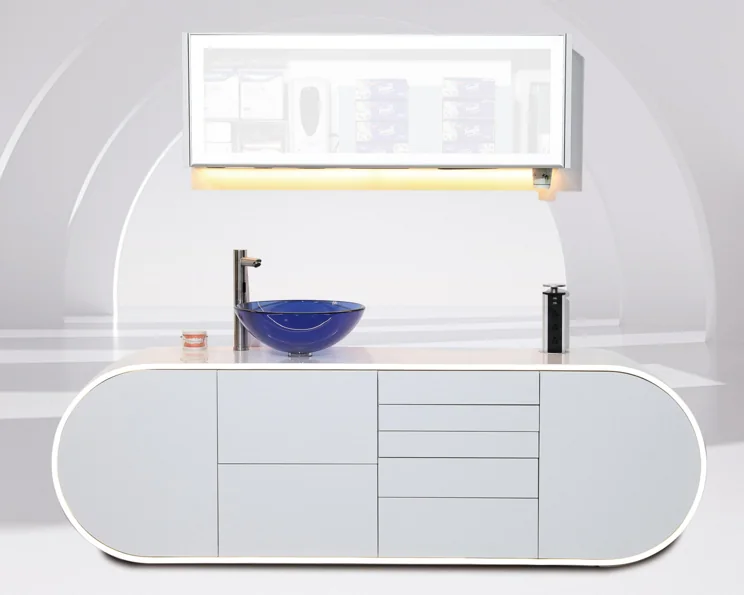

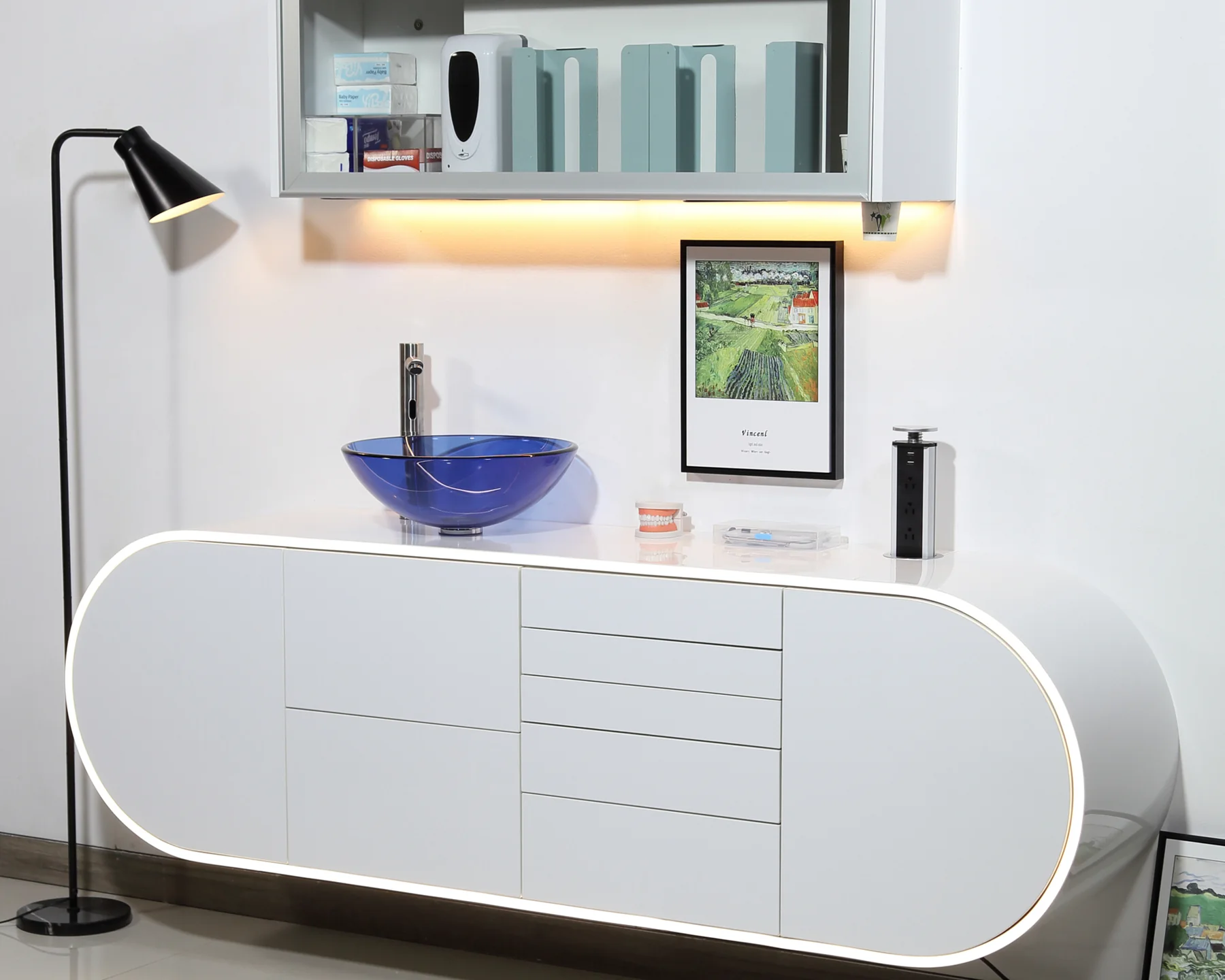

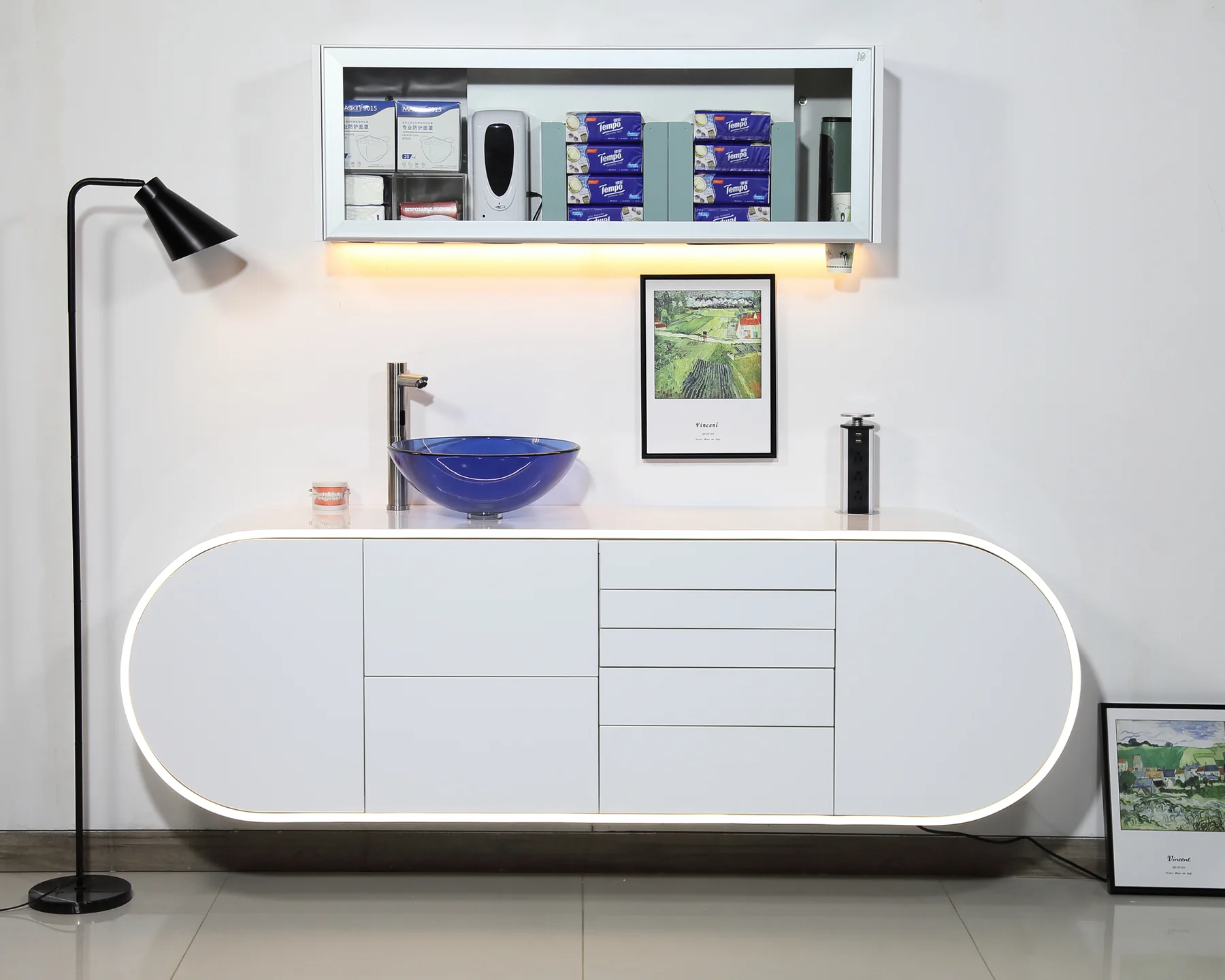

A curved dental cabinet with a vessel basin, illuminated upper storage, push-open drawers and integrated drawer organizers. Cabinet layout and finish options are available. Confirm the final design and configuration with your inquiry.
Reference sizeBase: 2000 L x 400 D x 600 H mm; wall: 1200 L x 282 D x 400 H mm
Elliptical base cabinet with push-open curved doors and an acrylic smooth surface.
02
Basin options
Choose an above-counter glass or white ceramic basin and confirm left or right placement.
03
Organized drawers
Push-open drawer rails and five ABS drawer divider trays.
04
Integrated lighting
Inductive upper LED lighting and remotely controlled lower ambient lighting.
Features
TJ-DC50 cabinet details

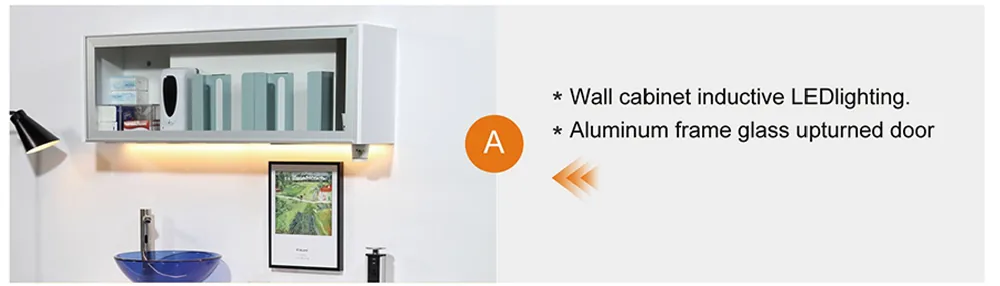

UPPER CABINET LIGHTING
Upper cabinet lighting
The upper cabinet includes a sensor-operated work light and storage for dispensers.
VESSEL BASIN OPTIONS

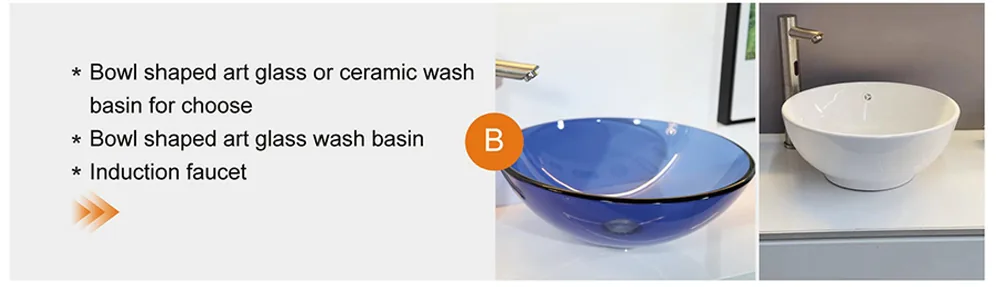

Vessel basin options
Choose an above-counter glass or white ceramic basin, with left or right placement confirmed before ordering.
DRAWER DIVIDERS

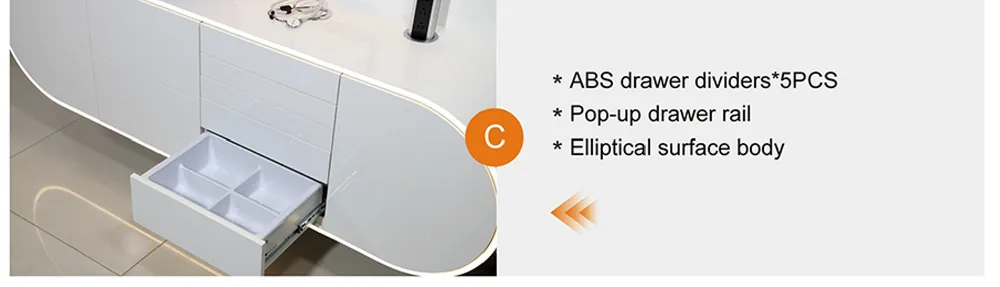

Drawer dividers
Push-open drawers include five ABS divider trays in the supplier specification.
CURVED SIDE STORAGE

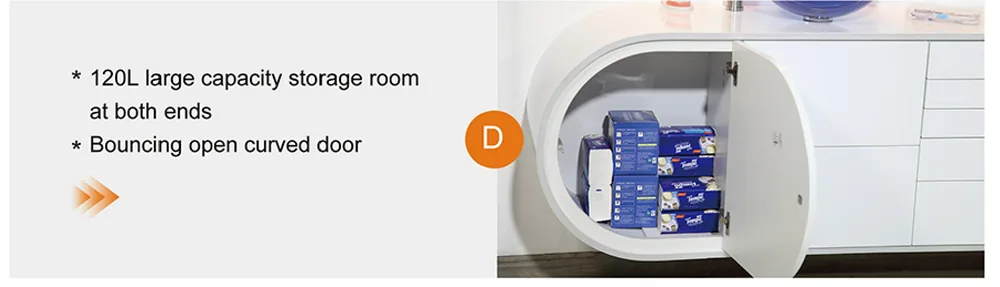

Curved side storage
The elliptical base cabinet has push-open curved doors and concealed storage beneath the basin.
ACRYLIC SURFACE AND LED

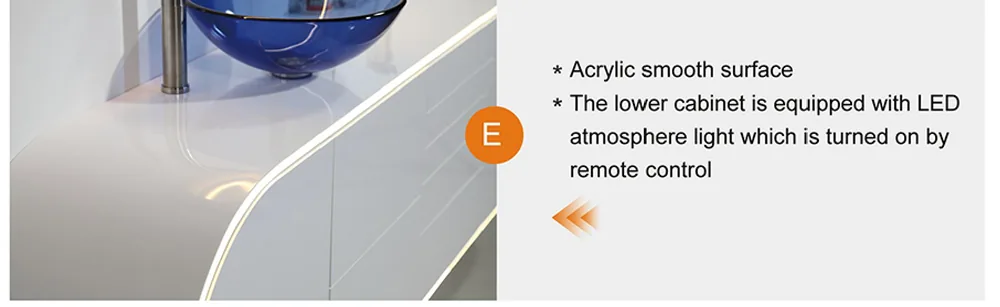

Acrylic surface and LED
An acrylic smooth surface and remotely controlled lower ambient lighting define the cabinet finish.
Color and material
TJ-DC50 colors and materials
Surface: Acrylic smooth surface described in the supplier specification. Upper door: Aluminum-framed glass lift-up door. Basin choices: Above-counter art glass basin or white ceramic basin. Finish selection: Confirm available cabinet finishes for the selected configuration.
01
Cabinet finish
Confirm the available acrylic surface finish for the selected configuration.
02
Worktop and fittings
Choose the above-counter glass or white ceramic basin and confirm its position.
03
Final selection
Share your preferred finish, room dimensions and configuration so the approved order drawing matches your project.
Technical specifications
TJ-DC50 technical specifications
Model
TJ-DC50
Product type
Curved Dental Cabinet with Vessel Basin
Reference dimensions (L × D × H)
Base: 2000 L x 400 D x 600 H mm; wall: 1200 L x 282 D x 400 H mm
Dimensions note
Customizable; final dimensions must follow the approved order drawing.
Surface
Acrylic smooth surface; internal substrate and countertop composition require confirmation
Wall cabinet door
Aluminum frame with glass
Reference packing volume
1.36 m3
Reference gross weight
315 kg
Packing note
Reference values only. Packing dimensions, crate quantities and gross weight vary with cabinet dimensions, quantities and combined packing. Confirm the order packing list.
Base depth clarification
400 mm is taken from the dimension drawing; 40D in the supplier table and catalogue is inconsistent with that drawing.
Power
Retractable socket with USB; confirm destination outlet standard.
Drainage
Wall and floor drainage openings described in the supplier specification; confirm site connections.
Product resources
TJ-DC50 documents
Review the available product documents, or contact us to confirm the final configuration.

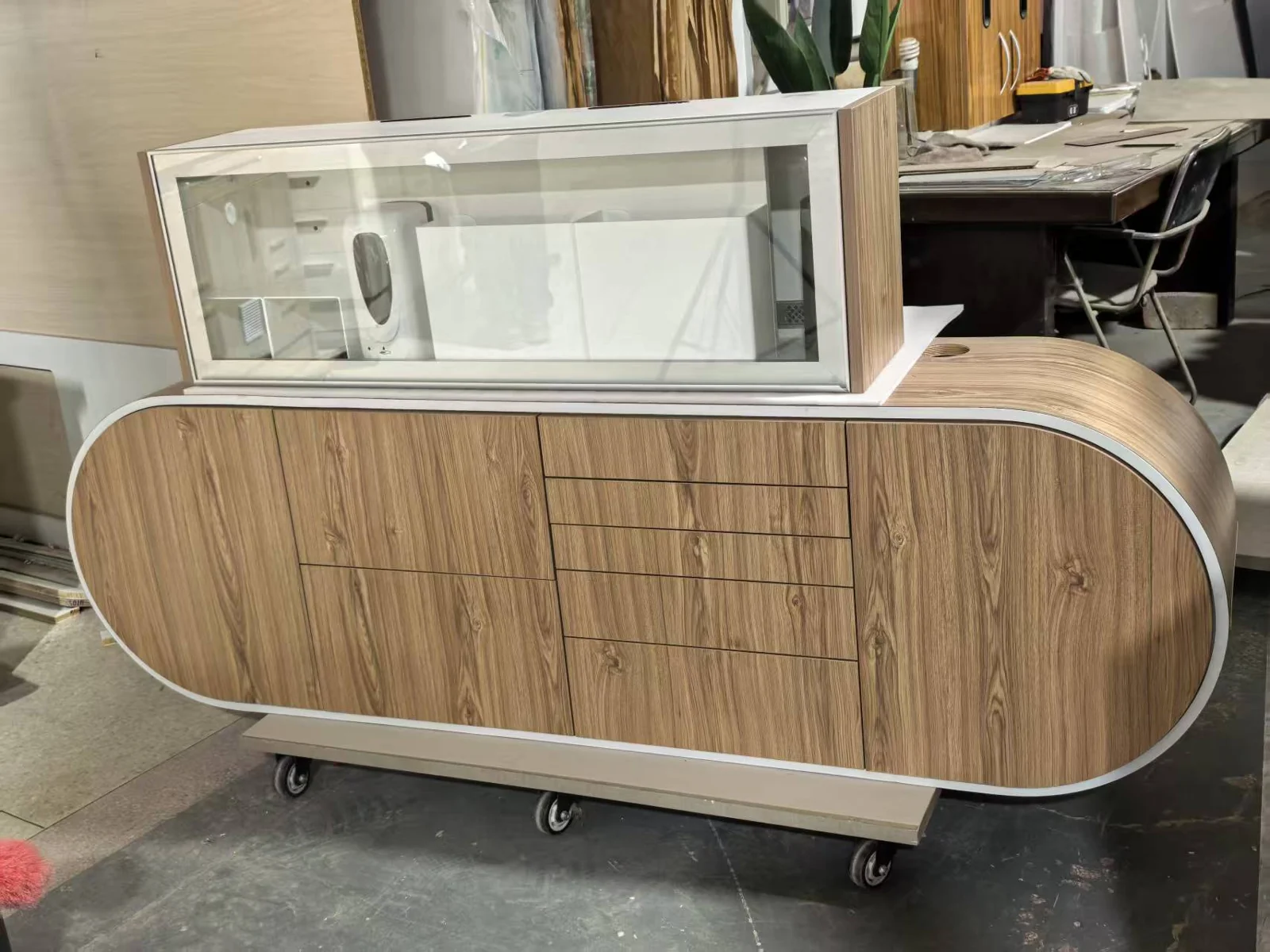

Shown in one finish and configuration; final details depend on the selected order.
Detail
Storage and component details of the illustrated cabinet configuration.
FAQ
Questions about the TJ-DC50
Yes. Share the room dimensions, layout and required configuration so the cabinet design can be confirmed.
Select the cabinet finish, countertop and handles applicable to the selected model and confirm the codes with your order.
Cabinets are preassembled at the factory. Components may be combined in crates according to the order dimensions and quantities.
Match the cabinet identification labels inside the doors to the order drawings.
Provide the model, quantity, room dimensions, preferred finishes, required accessories, electrical outlet standard and destination.
Confirm positioning, wall fixing, water, drainage and electrical connections against the approved project drawings.
Confirm the required basin position before ordering.
No. The supplier FAQ specifies an above-counter basin. Glass and white ceramic basin options are available.
The supplier specification describes openings for both wall and floor drainage. Confirm the site connection before ordering.
